• Two-Conductor Shielded Multichannel Cables
    Two-Conductor Shielded Multichannel Cables

Two-Conductor Shielded Multichannel Cables

Multichannel microphone cable for general purpose audio applications.

Key Features and Benefits

  • 2-conductor style construction.
  • Light weight and slim form.
  • Variety Channels.
  • Drain wire included in each unit.
  • Cross Linked PE Insulation.

For inquiries about this products

  • Tech Data
  • Downloads

Aluminum Foil Shield

Type Model No. of
ch.		 Sales
units		 Nom.
O.D.		 Weight No.of
cond.		 Unit composition Electrical characteristics
Cross sec.
area (AWG)
and cond.
comp.		 Twist
pitch		 Ch. O.D. Cond.
DCR		 Shield
DCR		 Nom.
cap.*		 Nom.
cap.**
m mm kg/
100m		 mm2
/(AWG)
Q’ty/mm		 mm mm ohm/
100m		 ohm/
100m		 pF/m pF/m

Jacket color:

GRY
L-2E4-2AL 2 100
200
500		 8.6 7.6 4 0.29(23)
7/0.23TA
Overall tin coated		 30 3.7 6.9 - 81 144
L-2E4-4AL 4 10.8 13.1 8
L-2E4-8AL 8 14.9 23.7 16
L-2E4-12AL 12 16.9 32 24
L-2E4-16AL 16 18.8 40 32
  • Insulation: Cross-linked PE, Jacket: PVC, Dielectric strength: 500V AC/min.
  • *Capacitance between conductors **Capacitance between conductor and shield.

Key Features and Benefits / L-2E4-AL Series

  • Used as cables for connecting devices with which wrapping tools can be used.
  • Drain wire included in each unit.

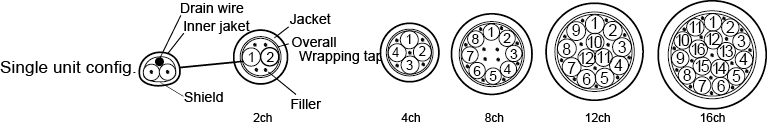

Cross-sectional View

Channel color code: color-coded insulation and dot line makings (ch 1 to 10: red, ch 11 to 16: blue) on inner jacket (gray).

Unit no. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Insulation
color		 RED/
WHT		 BLU/
WHT		 YEL/
WHT		 GRN/
WHT		 BRN/
WHT		 GRY/
WHT		 BLU/
BLK		 YEL/
BLK		 GRN/
BLK		 BRN/
BLK		 GRY/
BLK		 BLU/
ORN		 YEL/
ORN		 GRN/
ORN		 BRN/
ORN		 GRY/
ORN

Aluminum Foil Shield

Type Model No. of
ch.		 Sales
units		 Nom.
O.D.		 Weight No.of
cond.		 Unit composition Electrical characteristics
Cross sec.
area (AWG)
and cond.
comp.		 Twist
pitch		 Ch. O.D. Cond.
DCR		 Shield
DCR		 Nom.
cap.*		 Nom.
cap.**
m mm kg/
100m		 mm2
/(AWG)
Q’ty/mm		 mm mm ohm/
100m		 ohm/
100m		 pF/m pF/m
Jacket color:
Blk
M202-2AT 2 100
200
500		 6.5 4.8 4 0.18(25)
16/0.12A		 30 - 10.5 - 75 135
M202-4AT 4 8.1 9.0 8
M202-8AT 8 11.1 16 16
M202-12AT 12 12.5 18 24
M202-16AT 16 13.8 24 32
M202-24AT 24 16.8 32 48
M202-32AT 32 18.6 40 64

Jacket color:

Blk
MR202-2AT 2 100
200
500		 6.7 4.5 4 0.18(25)
7/0.18A		 25 2.7 10.7 - 76 142
MR202-4AT 4 7.6 6.2 8
MR202-8AT 8 11.0 13 16
MR202-12AT 12 12.7 19 24
MR202-16AT 16 14.0 23 32
MR202-24AT 24 17.4 34 48
MR202-32AT 32 19.1 44 64
  • Insulation: Cross-linked PE, Jacket: PVC, Dielectric strength: 500V AC/min.
  • *Capacitance between conductors **Capacitance between conductor and shield.

Key Features and Benefits / M202-AT Series

  • Multichannel cable featuring light weight and slim form.
    At only 16kg for a 50 m length of 24 channel cable, the M202-AT achieves a 47% weight reduction over previous Canare cables.
  • Each channel is individually isolated using insulated (PET) aluminum foil shield. < Fig. 1 >
  • Contains the highly pull-resistant Kevlar cable filler.
  • Drain wire included.
Note:
This series does not have inner jacket, so it cannot be used for fantails.

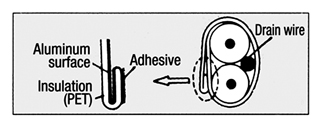

  • Fig. 1 Aluminum Foil Shield

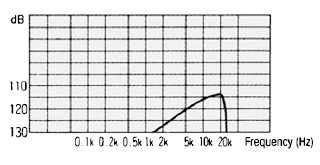

  • Crosstalk Characteristics for M202-24AT (100m)

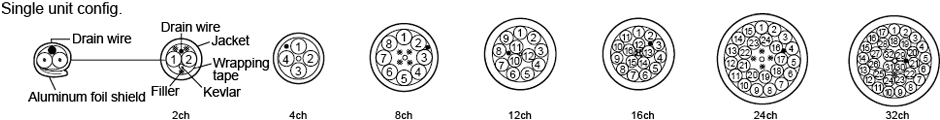

Cross-sectional View

Channel color code:

Unit no. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Insulation
color		 RED/
WHT		 BLU/
WHT		 YEL/
WHT		 GRN/
WHT		 BRN/
WHT		 GRY/
WHT		 BLU/
BLK		 YEL/
BLK		 GRN/
BLK		 BRN/
BLK		 GRY/
BLK		 BLU/
ORN		 YEL/
ORN		 GRN/
ORN		 BRN/
ORN		 GRY/
ORN		 BLU/
PNK		 YEL/
PNK		 GRN/
PNK		 BRN/
PNK		 GRY/
PNK		 BLU/
RED		 YEL/
RED		 GRN/
RED		 BRN/
RED		 GRY/
RED		 YEL/
BLU		 GRN/
BLU		 BRN/
BLU		 GRN/
YEL		 BRN/
YEL		 GRY/
YEL

Key Featu res and Benefits / MR202-AT Series

Our bestselling two-conductor multichannel cable featuring AWG25 stranded conductor, 100% shielding by aluminum foil, and drain wire.

  • Studio interconnect, portable snake system
  • Each channel identified per resistor color-coding
  • Aluminum foil shield and drain wire for easy terminate
Note:
Not appropriate for heavy-duty applications.

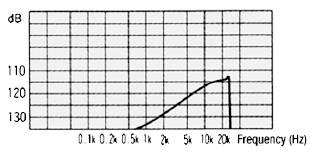

  • Crosstalk Characteristics for MR202-24AT (100m)

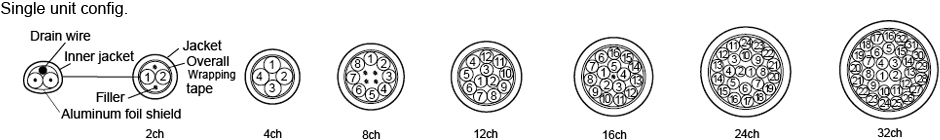

Cross-sectional View

Channel color code: Inner jacket color coding and spiral markings.

* Insulation inside units: one is clear and the other bears the same color as the spiral markings.

Unit no. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Insulation
color		 BRN RED ORN YEL GRN BLU PPL GRY WHT BLK BRN RED ORN YEL GRN BLU PPL GRY WHT BLK BRN RED ORN YEL GRN BLU PPL GRY WHT BLK BRN RED
Spiral markings BRN RED ORN YEL GRN BLU PPL GRY WHT BLK - RED ORN YEL GRN BLU PPL GRY WHT BLK BRN - ORN YEL GRN BLU PPL GRY WHT BLK BRN RED
Inner jacker color BLK BRN RED ORN

Spiral Shield

Type Model No. of
ch.		 Sales
units		 Nom.
O.D.		 Weight No.of
cond.		 Unit composition Electrical characteristics
Cross sec. area (AWG)
and cond. comp.		 Twist pitch Shield coverage Ch. O.D. Cond. DCR Shield DCR Nom. cap.* Nom. cap.**
m mm kg/100m mm2/(AWG)
Q’ty/mm		 mm % mm ohm/100m ohm/100m pF/m pF/m
Jacket color:
BLK
MS202-2P 2 100
200
500		 7.1 5.9 4 0.18 (25)
1/0.18TA
+
30/0.08TA		 25 91% (spiral) 2.8 11.4 3.3 74 145
MS202-4P 4 8.2 9.2 8
MS202-8P 8 10.9 16.0 16
MS202-12P 12 13.6 24.2 24
  • Insulation: Cross-linked PE, Jacket: PVC Dielectric strength: 500V AC/min.
  • *Capacitance between conductors **Capacitance between conductor and shield.

Key Features and Benefits / MS202-P Series

  • Multichannel cable for analog audio.
  • Composite conductors with 1 of 0.18 mm and 30 of 0.08 mm strands.
  • Easy-to-use color-coded units and spiral shield.
  • Drain wire included in each unit.

Cross-sectional View

Channel color code:

Unit no. 1 2 3 4 5 6 7 8 9 10 11 12
Insulation
color		 BRN RED ORN YEL GRN BLU PPL GRY WHT BLK BRN RED
Spiral markings BRN RED ORN YEL GRN BLU PPL GRY WHT BLK - RED
Inner jacker color BLK BRN

Spiral Shield

Type Model No. of
ch.		 Sales
units		 Nom.
O.D.		 Weight No.of
cond.		 Unit composition Overall
shield
coverage
(braid)		 Electrical characteristics
Cross sec. area (AWG)
and cond. comp.		 Twist
pitch		 Shield
coverage		 Unit O.D. Cond. DCR Shield DCR Nom. cap.* Nom. cap.**
m mm kg/100m mm2/(AWG)
Q’ty/mm		 mm % mm ohm/100m ohm/100m pF/m pF/m
Jacket color:
GRY
MS203-2BS 2 100
200
500		 8.9 11.0 4 0.31(23)
12/0.18TA		 30 91%(spiral) 3.5 79% 6.6 2.3 - -
MS203-4BS 4 10.3 15.8 8 80%
MS203-8BS 8 13.5 27.0 16
  • Insulation: Cross-linked PE (orange, white), Jacket: PVC, Dielectric strength: 500V AC/min.
  • *Capacitance between conductors **Capacitance between conductor and shield.

Key Features and Benefits / MS203-BS Series

  • Multichannel version of MS203.
  • Overall braided shield enables robust shielding performance.
  • Drain wire included in each unit.

  • Crosstalk Characteristics for MR202-24AT (100m)

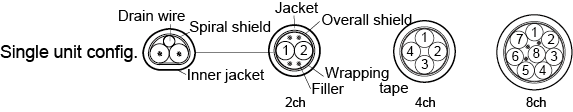

Cross-sectional View

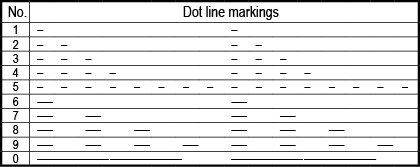

Unit ID: by dot line markings
