AES/EBU Digital Audio Cables
AES/EBU Digital Audio Cables
Ideal for conveying digital audio signals in conformance with AES/EBU and IEC standards.
Key Features and Benefits
- Ideal for AES/EBU digital audio.
- Twisted pairs with appropriate shield for each application.
- 110 ohm impedance.
- Drain wire included. (excluding DA206）
- Tech Data
- Downloads
AES/EBU Digital Audio Cables
| Type | No.of ch. |
Model | Sales units |
Nom. O.D. |
Weight | Unit composition | Electrical characteristics | Charac- teristic impedance |
Attenuation | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cross sec. area (AWG) and cond. comp. |
Twist pitch |
Shield coverage (braid) |
Unit O. D. |
Cond. DCR |
Shield DCR |
Nom. cap.* |
Nom. cap.** |
||||||||
| m | mm | kg/ 100m |
mm2 /(AWG) Q’ty/mm |
mm | % | mm | ohm/ 100m |
ohm/ 100m |
pF/m | pF/m | ohm | dB/ 100m (3 MHz) |
|||
 Jacket color: BLU |
1 | DA206 | 100 200 |
7.3 | 7.5 | 0.56(20) 7/0.32A |
60 | 95% | - | 3.3 | 1.4 | 48 | 73 | 110 | 2.6 |
 Jacket color: BLU |
1 | DA202 | 100 200 |
5.0 | 3.6 | 0.18(25) 7/0.18TA |
32 | 95% | - | 10.6 | 2.0 | 48 | - | 110 | 5.1 |
 Jacket color: BLU |
1 | DA202AT | 100 200 |
4.0 | 1.6 | 0.18(25) 7/0.18A |
38 | - | - | 10.6 | - | 45 | - | 110 | 6.7 |
 Jacket color: BLU |
1 | DA203AL | 100 200 |
6.0 | 4.2 | 2 | 0.29(23) 7/0.23TA Overall tin coated |
45 | - | - | 6.8 | 48 | 95 | 110 | 5.4 |
 DA202F-8P Jacket color:BLU |
2 | DA202F-2P | 100 200 500 |
7.7 | 6.7 | 0.18(25) 7/0.18TA |
25 | 91% Spiral shield |
3.0 | 11.3 | 3.0 | 47 | 95 | 110 | 5.6 |
| 4 | DA202F-4P | 8.8 | 10 | ||||||||||||
| 8 | DA202F-8P | 11.5 | 17 | ||||||||||||
| DA203-4AL Jacket color: BLU |
2 | DA203-2AL | 100 200 500 |
11.8 | 12.2 | 0.29(23) 7/0.23TA Over tin coated |
42 | - | 4.9 | 6.9 | - | 48 | 95 | 110 | 5.4 |
| 4 | DA203-4AL | 13.8 | 18.9 | ||||||||||||
| 8 | DA203-8AL | 19.3 | 33.2 | ||||||||||||
| 12 | DA203-12AL | 21.9 | 44.1 | ||||||||||||
- Insulation: Cross-linked PE (DA202F-P: Cross-linked foam PE), Jacket: PVC, Dielectric strength: 500V AC/min.
- *Capacitance between conductors **Capacitance between conductor and shield.
Key Features and Benefits / DA206, DA202
- PE rod configuration ensures consistent 110 ohm impedance with large or small bends in cable during installation.
- DA206 ideal for digital audio paths up to 360 m*.
DA202 ideal for digital audio paths up to 180 m*. - DA202 contains a drain wire.
Key Features and Benefits / DA202AT
- Designed for internal cabling connections on racks.
- Ideal for digital audio paths up to 140 m*.
- Drain wire included.
Key Features and Benefits / DA203-AL Series
- Wrapping tool can be used.
- Ideal for digital audio paths up to 170 m*.
- Drain wire included in each unit.
Key Features and Benefits / DA202F Series
- Slim and lightweight.
- DA202F-8P designed to fit snugly with D-sub 25 pin connector.
- Cross-linked foam PE insulation.
- Ideal for digital audio paths up to 140 m*.
- Drain wire included in each unit.
- * Condition: AES3 SR48kHz

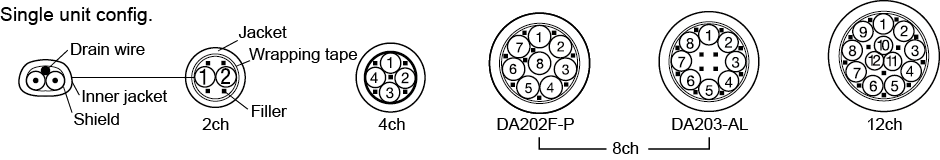

Cross-sectional View for DA202F-P & DA203-AL
Channel Color Coding
DA202F-P: by the insulator color & the spiral markings on the inner jacket (blue).
| Unit no. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Insulator Color | BRN, WHT | RED, WHT | ORG, WHT | YEL, WHT | GRN, WHT | BLU, WHT | PPL, WHT | GRY, WHT |
| Spiral Markings | BRN | RED | ORG | YEL | GRN | - | PPL | GRY |
DA203-AL: by the insulator color & the spiral markings on the inner jacket (gray).
| Unit no. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Insulator Color | RED, WHT | BLU, WHT | YEL, WHT | GRN, WHT | BRN, WHT | GRY, WHT | BLU, BLK | YEL, BLK | GRN, BLK | BRN, BLK | GRY, BLK | BLU, ORG |
| Spiral Markings | RED | BLU | YEL | GRN | BRN | - | BLU, BLK | YEL, BLK | GRN, BLK | BRN, BLK | BLK | BLU, ORG |
