• A/V Composite Cables
    A/V Composite Cables

A/V Composite Cables

Used for linking audio video equipment and as extensions for video cameras.

Key Features and Benefits

  • A/V Combo Snakes.
  • For ENG/EFP/OB applications.
  • Audio + Video in Same Cable Bundle.
  • Use with Canare 75 ohm BNC, F or RCA Crimp Plugs.
  • Tech Data
  • Downloads

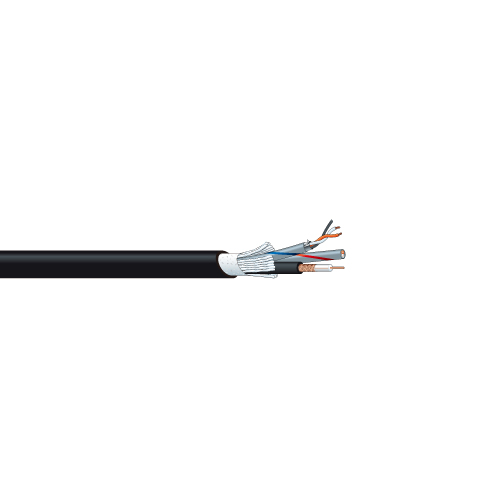

A/V Composite Cables

Type Cross-
section view
Model Sales
units
Nom.
O.D.
Weight Unit type
V:Video
A:Audio
C:Control line
Unit composition Electrical characteristics
Cross sec. area
Conductor comp.
Shield
coverage
Unit. O.D. Charac-
teristic
impedance
Attenuation
m mm kg/100m mm2/(AWG)
Q’ty/mm
% mm ohm dB/100m
(10 MHz)

A2V1

Jacket color:

Blk
A2V1 100
200
9.7 11 V Video
3C-2V x 1
0.20(25)
1/0.5A
97%(braid) 4.4 75 4.1
A Audio
L-2B2AT x 2
Refer to L-2B2AT Alminum foil shield 3.2 - -
A2V2-L 11.0 16 V Video
3C-2V x 2
0.20(25)
1/0.5A
97%(braid) 4.4 75 4.1
A Audio
L-2B2AT x 2
Refer to L-2B2AT Alminum foil shield 3.2 - -
C Control Lines
0.2mm2 x 4
0.20(24)
18/0.12A
- 1.3 - -
A2V1B 11.1 13 V Video
3C-2VS x 1
0.18(25)
7/0.18A
97%(braid) 4.4 75 4.5
A Audio
4E3 Unit x 2
0.08(28)
7/0.12A
93%(braid) 3.4 - -
A2V2B 12.3 17 V Video
3C-2VS x 2
0.18(25)
7/0.18A
97%(braid) 4.4 75 4.5
A Audio
4E3 Unit x 2
0.08(28)
7/0.12A
93%(braid) 3.4 - -
A3V2-FB 12.4 17 V Video
3CFB Unit x 2
0.33(22)
1/0.65A
91%(braid)
+
Aminum foil
4.4 75 3.7
A Audio
L-2B2AT x 3
Refer to L-2B2AT Alminum foil shield 3.2 - -
  • Jacket: PVC, Dielectric strength: 500V AC/min.

Key Features and Benefits / A2V1, A2V2-L

  • Designed for fixed installation.

Key Features and Benefits / A2V1B, A2V2B

  • Ideal for locations requiring cable bending.

Key Features and Benefits / A3V2-FB

  • 3 balanced audio channels and 2 video coax channels for ENG, EFP, or OB applications.
