50 ohm Coaxial Cables
50 ohm Coaxial Cables

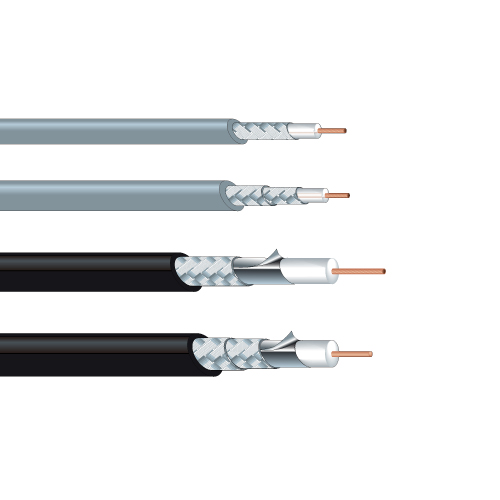

Canare 50 ohm coaxial cables are ideal for wireless telecommunication infrastructure.
Key Features and Benefits
- Professional wireless audio applications.
- Tinned copper braid shield.
- Rugged PVC jacket.(excluding L-5DFBW-PE)
- Designed for fixed installation.
- Tech Data
- Downloads
50 ohm Coaxial Cables
| Type | Model | Sales units |
Nom. O.D. |
Weight | Inner cond |
Insulation | Outer conductors |
Inner cond. resist. |
Outer cond. resist. |
Static capacity |
Charac- teristic impedance |
Attenu- ation |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Comp. | O.D. | O.D. | Foil | Braid comp. (coverage) |
||||||||||
| m | mm | kg/ 100m |
(AWG) Q’ty/ mm |
mm | mm | mm/ ends/ carriers |
ohm/ 100m |
ohm/ 100m |
pF/m | ohm | dB/ 100m (10 MHz) |
|||
L-3D2V Jacket: PVC Color: GRY |
L-3D2V | 100 200 |
5.3 | 4.5 | (20) 7/0.32A |
0.96 | 3.0 | - | 0.14TA/5/24 (98%) |
3.3 | 1.2 | 100 | 50 | 4.5 |
| L-5D2V | 7.3 | 7.9 | (15) 1/1.40A |
1.40 | 4.8 | - | 0.14TA/7/24 (95%) |
1.2 | 0.8 | 100 | 50 | 2.5 | ||
L-3D2W Jacket: PVC Color: GRY |
L-3D2W | 100 200 |
6.4 | 7.3 | (20) 7/0.32A |
0.96 | 3.0 | - | 0.14TA/5/24 (98%) 0.14TA/5/24 (96%) |
3.3 | 0.6 | 100 | 50 | 4.5 |
| L-5D2W | 8.0 | 11.0 | (15) 1/1.40A |
1.40 | 4.8 | - | 0.14TA/7/24 (95%) 0.14TA/7/24 (96%) |
1.2 | 0.4 | 100 | 50 | 2.5 | ||
L-5DFB Jacket: PVC Color: BLK
|
L-5DFB | 100 200 |
7.6 | 8.5 | (14) 1/1.80A |
1.80 | 5.0 | AL | 0.14TA/6/24 (90%) |
0.7 | 1.1 | 84 | 50 | 2.5 |
L-5DFBW-PE Jacket: PE Color: Blk |
L-5DFBW-PE | 100 200 |
8.0 | 10.4 | (14) 1/1.80A |
1.80 | 5.0 | AL | 0.14TA/7/24 (93%) 0.14TA/8/24 (95%) |
0.7 | 0.4 | 84 | 50 | 2.3 |
- Insulation: polyethylene, Dielectric strength: 1000V AC/min
Key Features and Benefits / L-3D2V, L-5D2V
- Tinned copper braided shield
Key Features and Benefits / L-3D2W, L-5D2W
- Tinned copper double braided shield
Key Features and Benefits / L-5DFB
- Low-loss foamed PE insulation
- Tinned copper braided shield with aluminum foil.
- Note:
- Designed for fixed installation.
Key Features and Benefits / L-5DFBW-PE
- Ideal for digital microwave communication systems
- PE jacket for fixed outdoor installation
- Low-loss foamed PE insulation
- Tinned copper double braided shield with aluminum foil
- Note:
- Designed for fixed installation.
50 ohm Coax Cable Nominal Attenuation (dB/100m)
Type |
Model | Frequency | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 MHz | 130 MHz | 470 MHz | 600 MHz | 710 MHz | 714 MHz | 800 MHz | 1240 MHz | 1260 MHz | 1575 MHz | 1700 MHz | 2000 MHz | 2400 MHz | 2600 MHz | 6000 MHz | ||
50 ohm |
L-3D2V, L-3D2W | 4.5 | 17.3 | 35.4 | 40.7 | 44.9 | 45.1 | 48.2 | 62.6 | 63.2 | 72.5 | 76.0 | 84.1 | 94.4 | 99.3 | 172.9 |
| L-5D2V, L-5D2W | 2.5 | 9.6 | 19.6 | 22.6 | 25.0 | 25.1 | 26.8 | 35.0 | 35.3 | 40.5 | 42.5 | 47.1 | 53.0 | 55.8 | 98.0 | |
| L-5DFB | 2.5 | 7.5 | 14.6 | 16.8 | 18.5 | 18.5 | 19.8 | 25.5 | 25.8 | 29.4 | 30.8 | 33.9 | 37.9 | 39.9 | 68.0 | |
| L-5DFBW-PE | 2.3 | 6.8 | 14.0 | 16.0 | 17.5 | 17.6 | 18.7 | 23.9 | 24.1 | 27.3 | 28.5 | 31.3 | 34.8 | 36.5 | 60.1 | |
