Hybrid Fiber-optic Camera Connector Panels

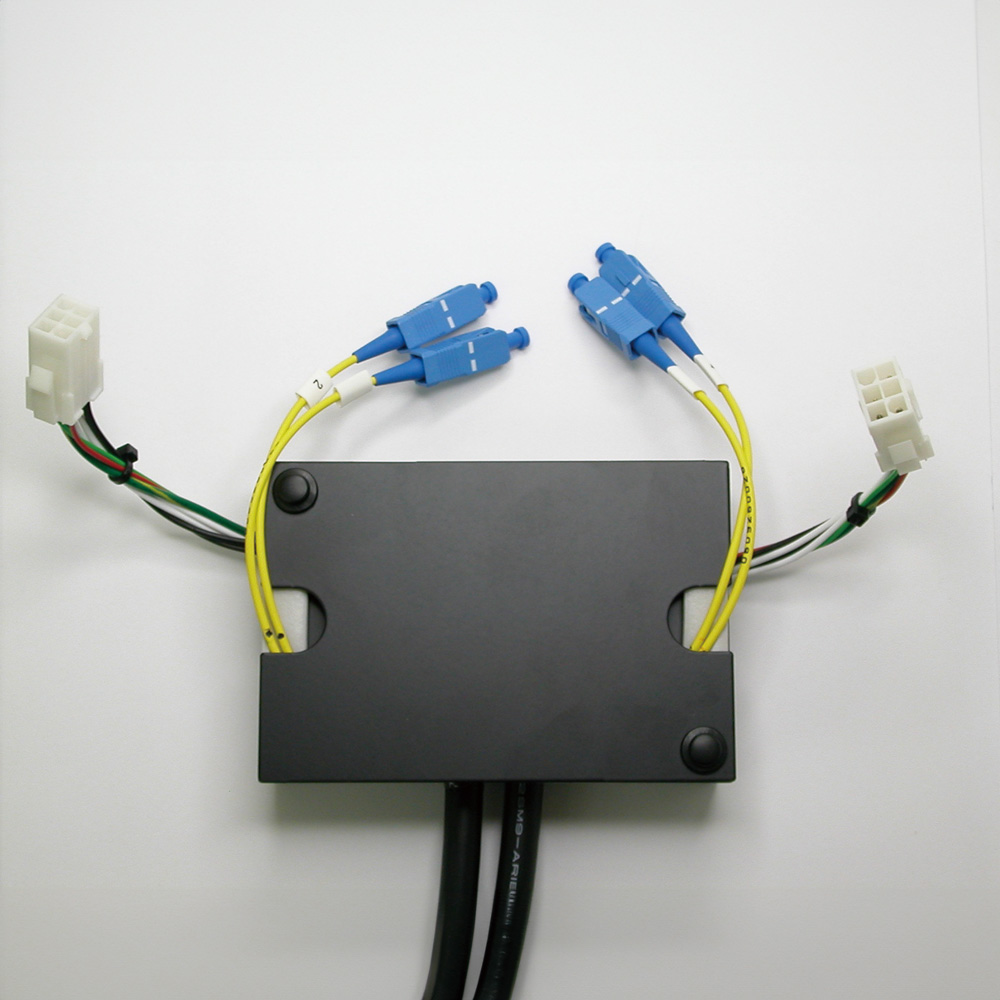

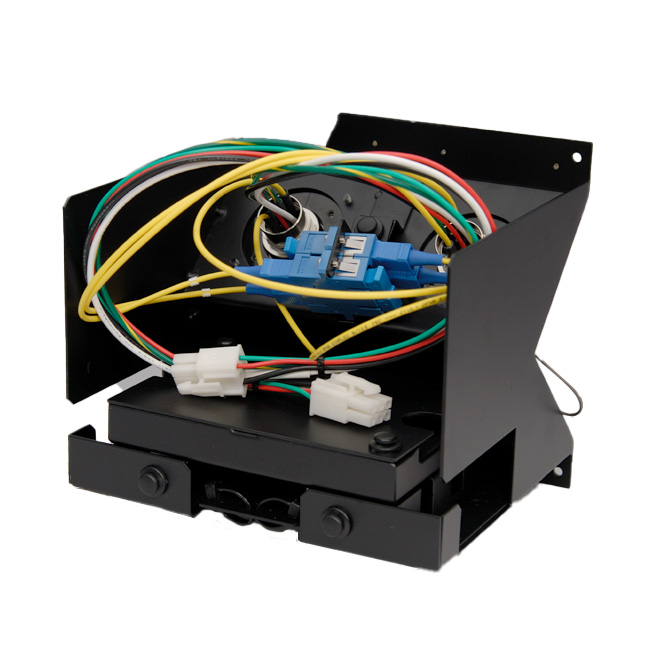

Pre-terminated HFO camera connector panel with built-in splice enclosure box provides easy and quick installation between HD camera system and terminal panel or rack. By combining the unit and frame, HFO camera connector panel enables a variety of layouts depending on the system design.

Key Features and Benefits

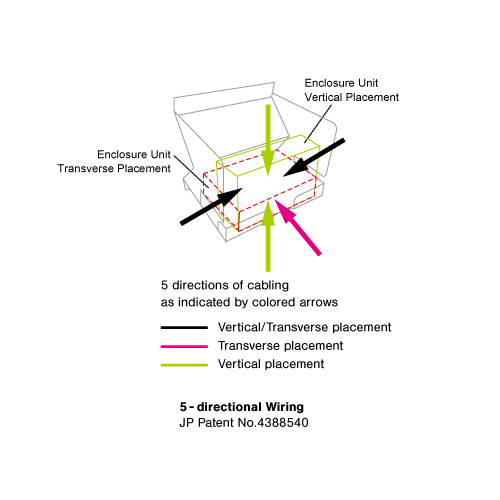

  • Exclusive “5-directional Wiring”
  • Convenient to build I/O interface between HD facilities and HD OB vans
  • Variety of choice of 2RU/3RU and wall/rack mount
  • Pre-terminated HFO connectors reduce installation time dramatically.
  • Cost effective
  • Lightweight aluminum chassis
  • Tech Data
  • Downloads

COPS Series (SMPTE)

Model Height Description
COPS-FF3A Wall Mount Type 3RU Height, W:197.6mm 2x FCFRA (FCS003A-FR)
COPS-FM3A 2x FCMRA (FCS003A-MR)
COPS-FF2A Wall Mount Type 2RU Height, W:197.6mm 2x FCFRA (FCS003A-FR)
COPS-FM2A 2x FCMRA (FCS003A-MR)
COPS3-FF3A Rack Mount Type 3RU 6x FCFRA (FCS003A-FR)
COPS3-FM3A 6x FCMRA (FCS003A-MR)
COPS3-FF2A Rack Mount Type 2RU 6x FCFRA (FCS003A-FR)
COPS3-FM2A 6x FCMRA (FCS003A-MR)
  • *HFO connectors are pre-terminated. (length: 0.3 m)
  • *Canare OC series (Hybrid-OPS profile) is also available. Please contact us for more details.

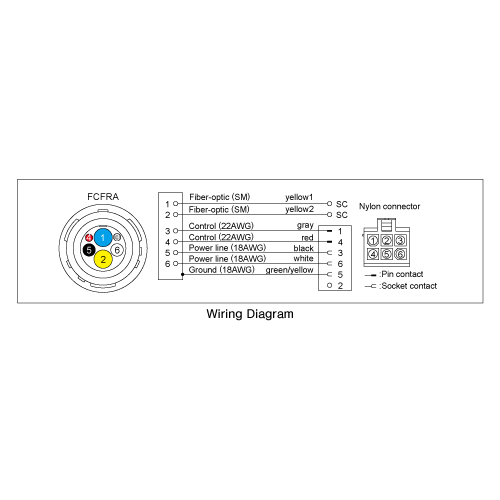

Wiring Diagram

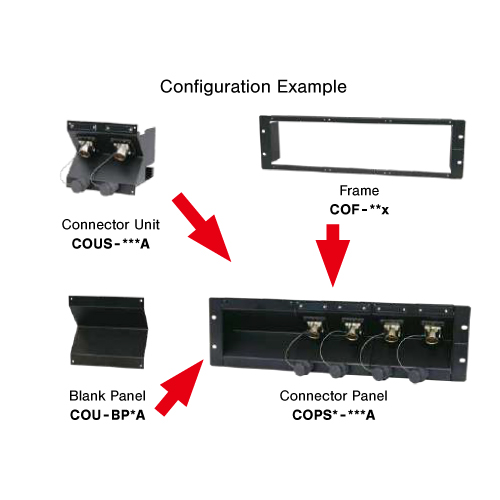

Individual Frame and Unit

Model Type Suitable Frame/Unit
COUS-FF3A 3 RU Connector Unit of COPS(3)-FF3A
COUS-FM3A Connector Unit of COPS(3)-FM3A
COF-13C Frame of COPS (for 1 unit)
COF-33B Frame of COPS3 (for 3 units)
COUS-FF2A 2 RU Connector Unit of COPS(3)-FF2A
COUS-FM2A Connector Unit of COPS(3)-FM2A
COF-12B Frame of COPS (for 1 unit)
COF-32A Frame of COPS3 (for 3 units)
  • * HFO connectors are pre-terminated. (length: 0.3 m)
  • * Canare OC series (Hybrid-OPS profile) is also available. Please contact us for more details.

Optional Parts

Model Panel Size HFO Connectors* (Assembly)
COU-BP3A Blank Panel COF-13A, COF-33B (3 RU frames)
COU-BP2A COF-12A, COF-32A (2 RU frames)
COU-CV3 Top Cover COUS-FF3A, COUS-FM3A (3 RU units)
COU-CV2 COUS-FF2A, COUS-FM2A (2 RU units)
  • COPS3-FM3A thum

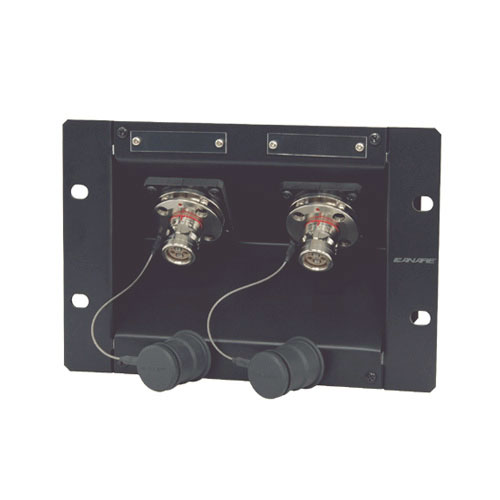

    COPS-FF3A

  • COPS3-FM3A thum

    COPS-FF2A

  • COPS3-FM3A thum

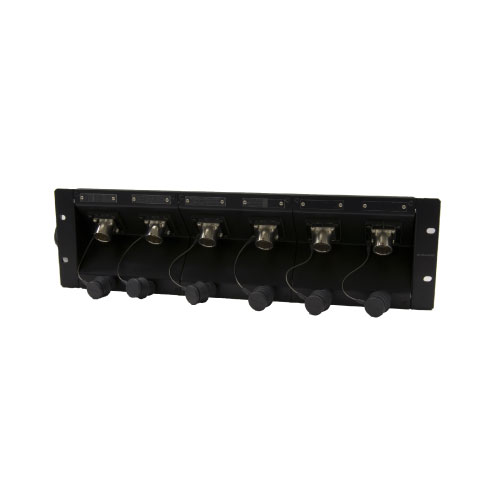

    COPS3-FM3A
