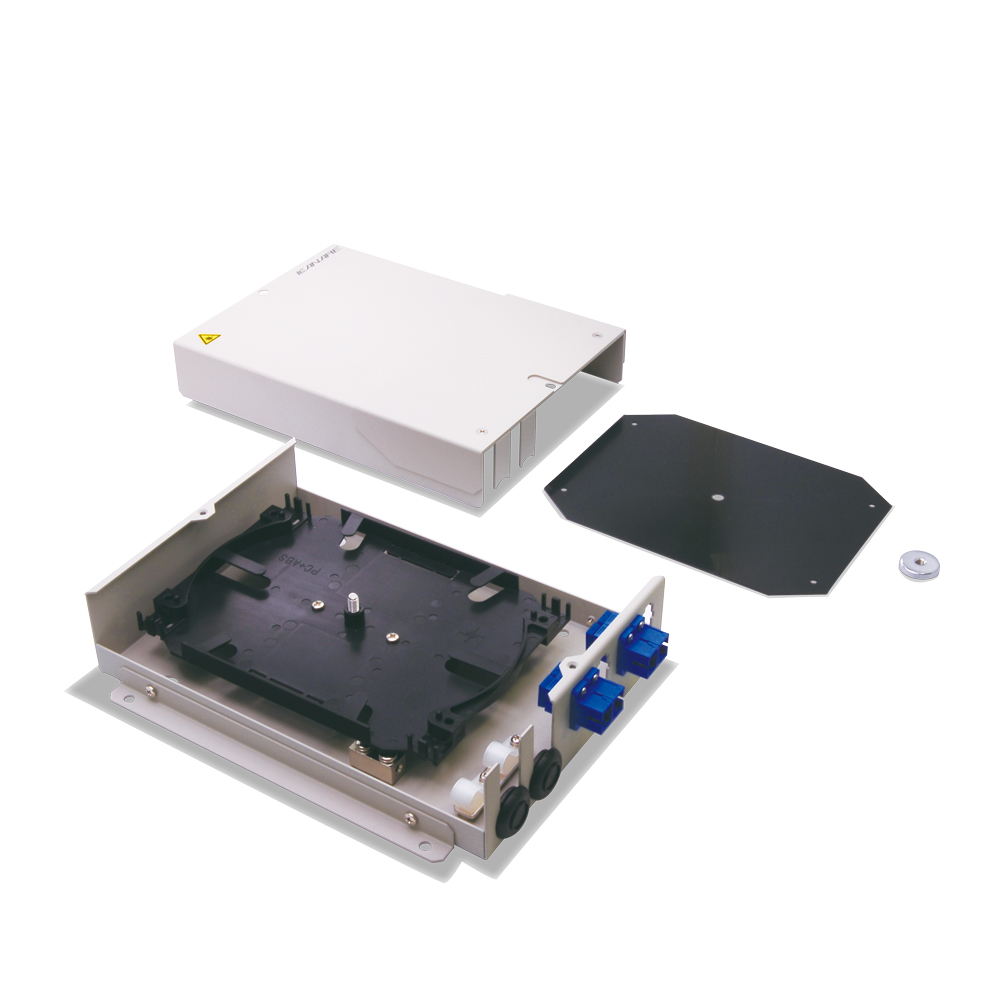

    FCE-2

Hybrid Fiber-optic Splice Enclosures

The optimized fiber-optic splice enclosures for use with HFO camera cables.

Key Features and Benefits

  • Used to protect fusion splice connection parts
  • Designed for use with LF-2SM9N
  • Easy cable installation
  • Can be placed vertically or horizontally
  • Detachable brackets and a connector protection cover
  • Insulated tension member clamp
Note:
The following tools are required for installing the nylon connector. AMP 91529-1 (26 to 22 AWG) and AMP 91536-1 (20x2 to 16 AWG)
  • Tech Data
  • Downloads

Hybrid Fiber-optic Splice Enclosures

Model No. of cables
(capacity)
No. of splice trays No. of Adapters
SCNylon
FCE-2 2 1 4 2
FCE-4 4 2 8 4
FCE-6 6 3 12 6

■ Wiring Diagram

FCE-2
FCE-4
FCE-6
Accessories:
Fiber-optic cable w/SC connector (2m), splice holder, fusion splice protection sleeve, nylon connector, pin contact, socket contact, tie band, grounding cable, color-coded tube.
TypeFCE-2FCE-4, FCE-6
A170240
B160230
C150220
D126196

Drawing
