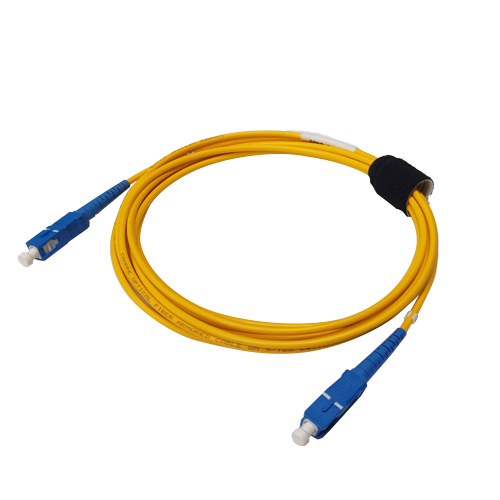

FS3C**A-S
Single-mode Fiber Optic Patch Cables
Allows tight bend radius, and is ideal for narrow spaces.
- TECH DATA
- TECH NOTE
- DOWNLOAD
Single-mode Fiber Optic Patch Cables
| Type | Model | Length(m) |
|---|---|---|
|

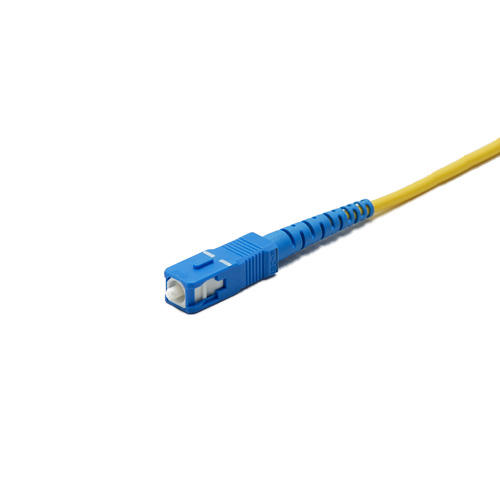

SC - SC
Cable O.D.: 3 mm
YEL
|
FS3C002A-S | 0.2 |
| FS3C003A-S | 0.3 | |
| FS3C005A-S | 0.5 | |
| FS3C007A-S | 0.7 | |
| FS3C01A-S | 1 | |
| FS3C02A-S | 2 | |
| FS3C03A-S | 3 | |
| FS3C04A-S | 4 | |
| FS3C05A-S | 5 | |
|
SC - SC
cable O.D.: 2mm
YEL
|
FS2C002A-SS | 0.2 |
| FS2C003A-SS | 0.3 | |
| FS2C005A-SS | 0.5 | |
| FS2C007A-SS | 0.7 | |
| FS2C01A-SS | 1 | |
| FS2C02A-SS | 2 | |
| FS2C03A-SS | 3 | |
| FS2C04A-SS | 4 | |
| FS2C05A-SS | 5 | |
|
SC - LC
cable O.D.: 2mm
YEL
|
FS2C002A-SS/LS | 0.2 |
| FS2C003A-SS/LS | 0.3 | |
| FS2C005A-SS/LS | 0.5 | |
| FS2C007A-SS/LS | 0.7 | |
| FS2C01A-SS/LS | 1 | |
| FS2C02A-SS/LS | 2 | |
| FS2C03A-SS/LS | 3 | |
| FS2C04A-SS/LS | 4 | |
| FS2C05A-SS/LS | 5 | |
|
LC - LC
cable O.D.: 2mm
YEL
|
FS2C002A-LS | 0.2 |
| FS2C003A-LS | 0.3 | |
| FS2C005A-LS | 0.5 | |
| FS2C007A-LS | 0.7 | |
| FS2C01A-LS | 1 | |
| FS2C02A-LS | 2 | |
| FS2C03A-LS | 3 | |
| FS2C04A-LS | 4 | |
| FS2C05A-LS | 5 | |
|
LC - LC Duplex
cable O.D.: 2mm
YEL
|
2FSZ2S005A-DLS | 0.5 |
| 2FSZ2S007A-DLS | 0.7 | |
| 2FSZ2S01A-DLS | 1 | |
| 2FSZ2S02A-DLS | 2 | |
| 2FSZ2S03A-DLS | 3 | |
| 2FSZ2S04A-DLS | 4 | |
| 2FSZ2S05A-DLS | 5 |
Key Features and Benefits
- ITU-T G.652.D/G.657.A2
- Low-water-peak
- Minimum bend radius: 10 mm
- Insertion loss: 0.5 dB max.
- Return loss: 50 dB max. (UPC)
- UL type OFNR
Technical note
Canare’s Single-mode Fiber-optic Cables
Canare’s single mode fiber (SMF) cables are compliant with ITU-T G.652. D as well as ITU-T G.657.A2. Our SMF cables feature less water peak and excellent wavelength multiplexing capabilities in minimum 7.5mm bending radius per a unit,which gives you cabling even easier.
| ITU-T | Category | Bend Radius | Number of Turns | Bending Loss (Max. at) | |
|---|---|---|---|---|---|
| λ=1550nm | λ=1625nm | ||||
| (mm) | (times) | (dB) | (dB) | ||
| G.657 | A1 | 15 | 10 | 0.25 | 1.0 |
| 10 | 1 | 0.75 | 1.5 | ||
| A2 | 15 | 10 | 0.03 | 0.1 | |
| 10 | 1 | 0.1 | 0.2 | ||
| 7.5 | 1 | 0.5 | 1.0 | ||
| B2 | 15 | 10 | 0.03 | 0.1 | |
| 10 | 1 | 0.1 | 0.2 | ||
| 7.5 | 1 | 0.5 | 1.0 | ||
| B3 | 10 | 1 | 0.03 | 0.1 | |
| 7.5 | 1 | 0.08 | 0.25 | ||
| 5 | 1 | 0.15 | 0.45 | ||
