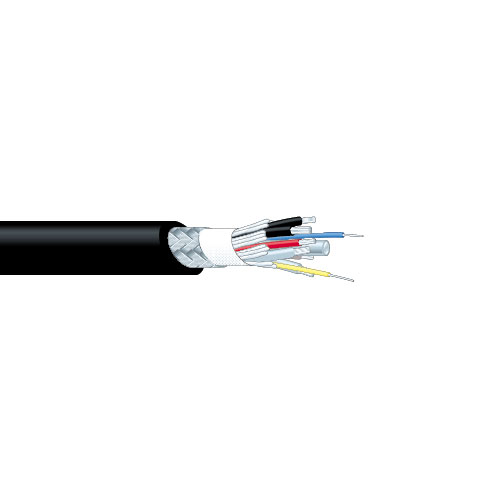

SMPTE Standard (SMPTE ST 311) compliant cables for camera.

Key Features and Benefits

  • Hybrid Electrical and Fiber-Optic Camera Cable for studio and broadcast use.
  • Single-mode, ITU-T G.657.A2 low bending loss and low water-peak fiber.
  • Tech Data
  • Downloads

Hybrid Fiber-optic Camera Cables (SMPTE ST 311)

Type Model Sales
Units
(m)
Nom.
O.D.
(m)
Weight
kg/100m
Outer
Jacket
Overall
Shield
Tension Tolerance
(N)
Strength
Member
O.D. (mm)
Min. Bend Radius Temp. Range
(deg C)
Channel Unit
Fiber Aux.
(Power)
Signal
(Control)

LF-2SM9N

LF-SM2-6C
BLK
LF-2SM9N Call 9.2 12.0 Abrasion-
resistance
PVC
9/24/0.10TA 91% 700 2.6 6 x
Nom. O.D
-40
to
+75
2 x SM 9/125
(low-water-peak)
Unit O.D. 0.9 mm
4 x 20 AWG
21 / 0.18TA
Unit O.D. 1.7 mm
2 x 25 AWG
7 / 0.18TA
Unit O.D. 1.2
mm
LF-2SM16 16 29.0 Double PVC

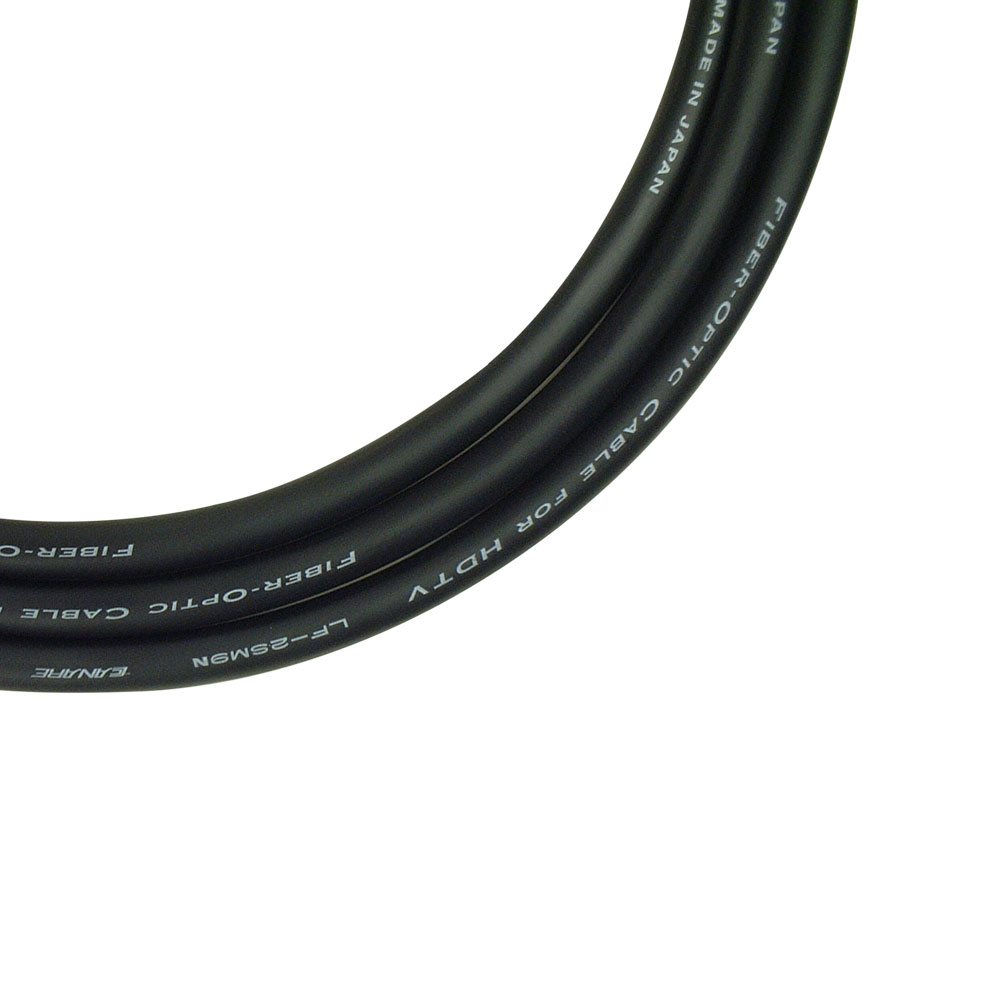

Key Features and Benefits / LF-2SM9N

  • For general use.
  • Abrasion-resistance Jacket enhance the adaptability to all studio and outside broadcast applications.
  • Cost effective

Key Features and Benefits / LF-2SM16

  • For studio use.
  • O.D. 16mm Double Jacket prevents the cable from being jammed under a camera pedestal dolly.

< Connection Example >

example
