Tactical Fiber-optic Cable
Particularly rugged multichannel fiber-optic cable designed for mobile applications.
- TECH DATA
- TECH NOTE
- DOWNLOAD
Tactical Fiber-optic Cable
| Type | Model | No of ch. | Sales Units (m) | Nom. O.D. (m) | Weight kg/100m | Tension Tolerance (N) | Strength Member | Min Bend Radius | Temp. Range (deg C) | Fiber-optic Unit | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiber | Attenuation | Unit O.D. | ||||||||||
 BLK
|
LF-SM2T-4C | 4 | 100 200 500 |
7.8 | 4.9 | 1400 | Aramid yarn |
Equal to Nom. O.D. |
-55 to 85 |
SM 9/125 (low-water-peak) | 0.6 dB/kw @1310 nm |
2.0 mm including aramid yarn |
Jacket: TPU
Key Features and Benefits
- Heavy-duty and high flexibility
- * Crush resistance: 2,000 N/cm
- * Impact resistance: 300 impacts
- * Cycle flexing: 20,000 cycles
- Single-mode
- Color-coded breakout type unit
- Thermoplastic polyurethane jacket
- Aramid yarn strength member
- 4-channel cable best suited for Quad-link 3G-SDI signals.
Cross Session
| LF-SM2T-4C |
Key
|
|---|---|
 |
Cable Assemblies
| Type | Model | Length (m) |
|---|---|---|
 BLK
|

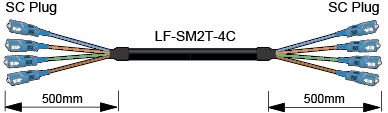

4FS50T-SS | 50 |
| 4FS100T-SS | 100 | |
| 4FS150T-SS | 150 | |
| 4FS200T-SS | 200 | |
 BLK
|

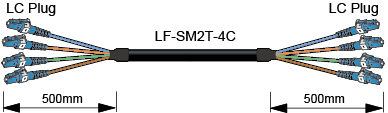

4FS50T-LS | 50 |
| 4FS100T-LS | 100 | |
| 4FS150T-LS | 150 | |
| 4FS200T-LS | 200 | |
 BLK
|

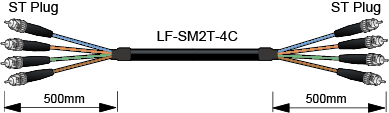

4FS50T-ST | 50 |
| 4FS100T-ST | 100 | |
| 4FS150T-ST | 150 | |
| 4FS200T-ST | 200 |
Technical note
Canare’s Single-mode Fiber-optic Cables
Canare’s single mode fiber (SMF) cables are compliant with ITU-T G.652. D as well as ITU-T G.657.A2. Our SMF cables feature less water peak and excellent wavelength multiplexing capabilities in minimum 7.5mm bending radius per a unit,which gives you cabling even easier.
| ITU-T | Category | Bend Radius | Number of Turns | Bending Loss (Max. at) | |
|---|---|---|---|---|---|
| λ=1550nm | λ=1625nm | ||||
| (mm) | (times) | (dB) | (dB) | ||
| G.657 | A1 | 15 | 10 | 0.25 | 1.0 |
| 10 | 1 | 0.75 | 1.5 | ||
| A2 | 15 | 10 | 0.03 | 0.1 | |
| 10 | 1 | 0.1 | 0.2 | ||
| 7.5 | 1 | 0.5 | 1.0 | ||
| B2 | 15 | 10 | 0.03 | 0.1 | |
| 10 | 1 | 0.1 | 0.2 | ||
| 7.5 | 1 | 0.5 | 1.0 | ||
| B3 | 10 | 1 | 0.03 | 0.1 | |
| 7.5 | 1 | 0.08 | 0.25 | ||
| 5 | 1 | 0.15 | 0.45 | ||
