Pre-Loaded A/V Connector Panels

Strong Alloy Steel Panel. BNC and XLR types are available.

Key Features and Benefits

  • BNC and XLR types are available.
  • Clear plastic cover, full screen desi-strip
  • Variety of panel options
  • Most popular panel holes XLR F-77 and Neutrik D available
  • 1 RU connector panel with 16 BNC jack-to-jack receptacles.
  • Ideal for use in in/out panel as well as for terminal panel.
  • 161U-JRUK and 162U-JRUK are compatible with 12G-SDI
  • 26.5 mm: Minimum pitch between adjacent connectors
    29.1mm: Depth
Note:
161U-JRUDB is not 12G-SDI
  • Tech Data
  • Downloads

BNC Connector Panels12G-SDI

Type Panel Size Model Loaded Connector Panel P/N Dimensions (mm)

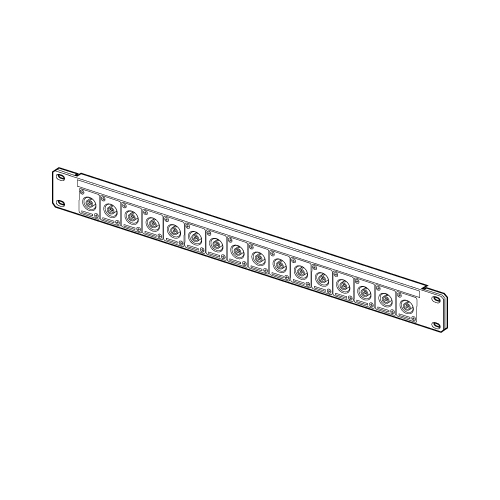

1 RU 161U-JRUK BCJ-JRUK (16 pcs) 1U-AS1 44 x 482.6 x 31.4
161U-JRUDB BCJ-JRUDB (16 pcs) 1U-AS1D 44 x 482.6 x 29.1

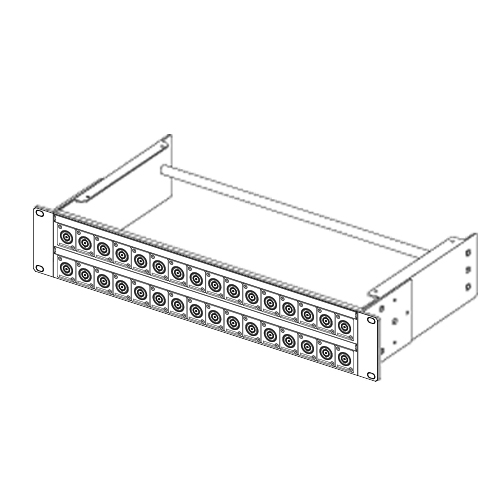

2 RU 162U-JRUK BCJ-JRUK (32 pcs, 2 rows) 2U-AS7 88.1 x 482.6 x 217

XLR Connector Panels

Type Panel Size Model Loaded Connector Panel P/N Dimensions (mm)

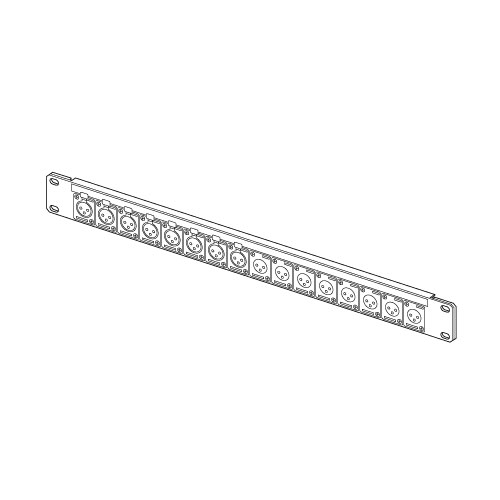

1 RU 161U-X1F XLR3-31F77 (16 pcs) 1U-AS1 44 x 482.6 x 39.7
161U-X2F XLR3-32F77 (16 pcs) 44 x 482.6 x 26.6
161U-X12F XLR3-31F77 (8 pcs, Left)
XLR3-32F77 (8 pcs, Right)
44 x 482.6 x 39.7
161U-B1 NC3FD-LX-B (16 pcs) 1U-AS1D 44 x 482.6 x 31.3
161U-B2 NC3MD-LX-B (16 pcs) 44 x 482.6 x 23.6

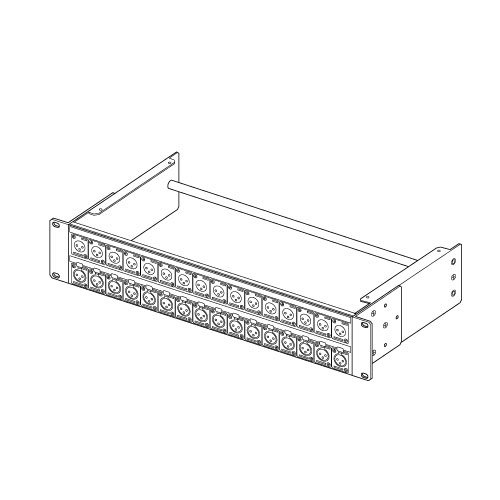

2 RU 162U-X21 XJ3M-P3FA (16 pcs, Upper Row)
XJ3F-P3MA (16 pcs, Lower Row)
2U-AS7 88.1 x 482.6 x 217
162U-X22 XJ3M-P3FA (32 pcs, 2 rows)
