Odering Information
Unloaded Video Jack Panels
Unloaded Panels for Canare Dual Video Jacks.
- TECH DATA
- DOWNLOAD
Unloaded Video Jack Panels
| Model | Panel Size | Jack Type | Description | Standard package |
|---|---|---|---|---|
| VJ2-V20-1U-*** | 1 RU | DVJB | 20ch (40 holes) | 1 |
| VJ2-V20-2U-*** | 2 RU | DVJB | 20ch (40 holes) | 1 |
| VJ2-V24-1U-*** | 1 RU | DVJB | 24ch (48 holes) | 1 |
| VJ2-V24-2U-*** | 2 RU | DVJB | 24ch (48 holes) | 1 |
| VJ2-V26-1U-*** | 1 RU | DVJB | 26ch (52 holes) | 1 |
| VJ2-V26-2U-*** | 2 RU | DVJB | 26ch (52 holes) | 1 |
| MJ2-M32-1U-*** | 1 RU | MDVJ and SVJK | 32ch (64 holes) | 1 |
| MJ2-M32-1.5U-*** | 1.5 RU | MDVJ and SVJK | 32ch (64 holes) | 1 |
| MJ2-M32-2U-*** | 2 RU | MDVJ and SVJK | 32ch (64 holes) | 1 |
| VJ2-M32-4U | 4 RU | MDVJ | 96ch (3 x 32 ch, 192 holes), Black | 1 |
| MJ2-M32CKA-1U-** | 1 RU | MCVJKA | 32ch (32 slots) | 1 |

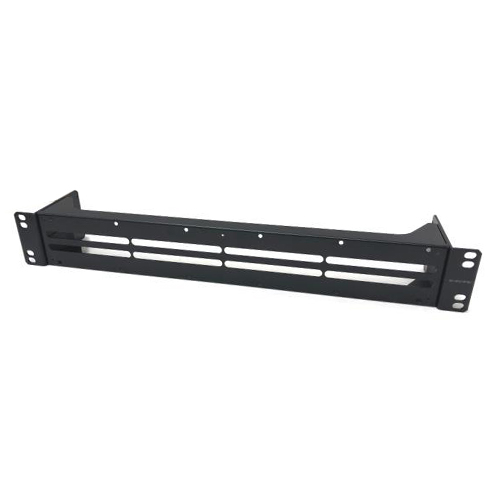

| MJ2-M32CKA-1.5U-*** | 1.5 RU | MCVJKA | 32ch (32 slots) | 1 |
| MJ2-M32CKA-2U-*** | 2 RU | MCVJKA | 32ch (32 slots) | 1 |
| MJ2-M48CK-1U-*** | 1 RU | MCVJHK | 48ch (48 slots) | 1 |
| Model | Panel Size | Jack Type | Description | Standard package |
|---|---|---|---|---|
| MJ2-M32CK-1U-BLK | 1 RU | MCVJK (Obsolete products) | 32ch (32 slots) | 1 |
Key Features and Benefits
- Color: Black and custom colors are available.
- Designation Strips.
- Easy Front Mount Assembly.
- Note:
- Please refer to the ordering information below.
- Note:
- for 4RU, one model only : VJ2 -M32-4U
- Note:
- 4RU type is available in black color only.
- Note:
- 4RU type can not be recessed.
| 1RU | 426mm | 6.2mm(*1) |
| 1.5RU | 426.5mm | 16.7mm |
| 2RU | 420mm | 18.4mm(*2) |
| 4RU | 431.8mm | 13.2mm |
MJ2-M32CKA-1U-* 426mm x 8.5mm
MJ2-M32CKA-2U-* 426.5mm x 16.7mm
-
MJ2-M32-1.5U-BLK
-
MJ2-M32-2U-BLK
-
MJ2-M32CKA-1U-BLK
-
VJ2-V24-1U-BLK
-
VJ2-M32-4U
