  • TS100E

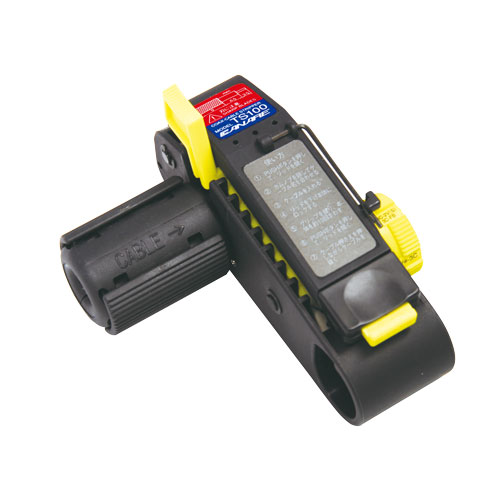

Coaxial Cable Stripper

Three internal circular steel blades perform precise, extremely clean and easy stripping.

Key Features and Benefits

  • For most Canare BNC, DIN, RCA and F crimp plugs.
  • Rotary knob to select 5 different cable setups.
  • Make your own cable setting within cable O.D. 4mm~11mm
  • Hex wrench is attached on the lid top for quick adjustment.
  • One replacement blade included, and also sold separately.
    Replacement blade: TSC (1pc)

The following types of cables may not be accurately processed by Canare’s TS100 Cable Stripper, owing to their construction.

Note1:
Cables employing such hard jacket material as polyethylene.
Note2:
Cables employing such particularly soft insulator material as highfoam polyethylene.
Note3:
Cables employing steel wire and semirigid pipe for outer conductor.
  • Tech Data
  • Instruction
  • Downloads

Coaxial Cable Stripper

Model Preset to Standard package
TS100E LV-77S·L-5CFB, V*-5CFB, V*-5C, LV-61S·L-4CFB, V*-3C 1
TS100U L-2.5CHD, 1855A, 1505A, 1694A 1

5-step Procedure

1. Turn cam knob to the right cable selection.

2. Straighten cable and insert into handle grip.

3. Close lid, firmly grasp handle grip, and slowly rotate 7-10 times.

4. Push open lid, pull cable while.

5. Insulation and jacket will be easily peeled off.

Drawing
