Premium HDMI Cable -
Premium HDMI Cable Flexibility -
High Speed HDMI Cable with Ethernet -
High Speed HDMI Extension Cable
HDMI Cable
Key Features and Benefits
- Made with our original flexible cable.
- Incredible performance and the best quality you can rely on.
- Gold plating finish offers low contact resistance and long - term durability.
- Note :
-
The Adopted Trademarks HDMI, High -Definition Multimedia Interface, Premium High Speed HDMI Cable, Premium High Speed HDMI Cable Label and Logo, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Tech Data
- Downloads
- Leaflet

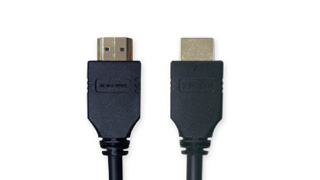

Premium HDMI
| Type | Model | Length(m) | O.D.(mm) |
|---|---|---|---|
HDMI - HDMI
 BLK WHT
|
HDM006P | 0.6 | 4.5 |
| HDM01P | 1 | ||
| HDM015P | 1.5 | 5.7 | |
| HDM02P | 2 | ||
| HDM03P | 3 | ||
| HDM05P | 5 | 6.5 | |
| HDM07P | 7 | 9.0 | |
| HDM09P | 9 |
Key Features and Benefits
- Premium HDMI certified
- Tested for reliable 4K UHD performance
- Support 4K60p and up to 18 Gbps bandwidth
- Seamless and robust plugs
High Speed HDMI with Ethernet
| Type | Model | Length(m) | O.D.(mm) |
|---|---|---|---|
HDMI - HDMI
 BLK
|
HDM006AE | 0.6 | 6.0 |
| HDM01AE | 1 | ||
| HDM015AE | 1.5 | ||
| HDM02AE | 2 | ||
| HDM03AE | 3 | ||
| HDM05AE | 5 | 7.3 |
Key Features and Benefits
- Support 4K30p and up to 10.2 Gbps bandwidth
- Cost effective
High Speed HDMI Extension
| Type | Model | Length(m) | O.D.(mm) |
|---|---|---|---|
HDMI(M) - HDMI(F)
 BLK
|
HDM003E-FM | 0.3 | 5.7 |
| HDM02E-FM | 2.0 | 6.5 |
Key Features and Benefits
- Male to Female
- Support 4K30p and up to 10.2 Gbps bandwidth
- Extend HDMI interface to a desirable position.
HDMI Comparison
| Model | HDM***U | HDM***P | APF***HDM | HDM***AE | HDM**AE-EQ | HDM10M-EQ | |
|---|---|---|---|---|---|---|---|
| Appearance |  |
 |
 |
 |
 |
 |
|
| Description | ULTRA High Speed HDMI Cable |
PREMIUM High Speed HDMI Cable with Ethernet |
Active Optical High Speed HDMI Cable | High Speed HDMI Cable with Ethernet | Active High Speed HDMI Cable with Ethernet | Active Durable High Speed HDMI Cable | |
| Bit Rate | 48Gbps | 18Gbps | 18Gbps | 10.2Gbps | 10.2Gbps | 10.2Gbps | |
| Frame Rate | 8K | 60p | N/A | N/A | N/A | N/A | N/A |
| 4K | 120p | 60p | 60p | 30p | 30p | 30p | |
| High Dynamic Range | Dynamic HDR/HDR | HDR | HDR | N/A | N/A | N/A | |
| Audio Return Channel | eARC | ARC | ARC | N/A | ARC | ARC | |
| Remarks | Supports all functions specified in HDMI 2.1a, passive copper cable, lengths up to 7m. | Supports all functions specified in HDMI 2.0, passive copper cable, lengths up to 9m. | Long distance up to 100m, built - in IC, one - directional, optical fiber with 28AWG, flexible cable. | Affordable solution for 4K@30p, passive copper cable, lengths up to 5m. | Lengths up to 20m, built - in IC, one - directional, active copper cable. | For mobile application, built - in IC, one - directional, flexible & durable copper cable, 10 meters only. | |
Technical Note
HDMI 2.1 Specification
HDMI 2.1 increases bandwidth capability up to 48Gbps. It highlights supporting ultra high video resolutions and refresh rates including
8K60P/4K120P, additionally Dynamic HDR.
Canare HDM***U series has qualified for The Ultra High Speed HDMI Certification Program. HDM***U is backwards compatible and can be used with the existing installed base of HDMI devices. The following table shows the entire functions that each HDMI device per version features.
| HDMI 2.1 Specification | |||||||
|---|---|---|---|---|---|---|---|
| 1 | 1.1 | 1.2-1.2a | 1.3-1.3a | 1.4-1.4b | 2.0-2.0b | 2.1 | |
| Full HD Blu - ray Disc and HD DVD video | YES | YES | YES | YES | YES | YES | YES |
| Consumer Electronic Control (CEC) | YES | YES | YES | YES | YES | YES | YES |
| DVD-Audio | NO | YES | YES | YES | YES | YES | YES |
| Super Audio CD (DSD) | NO | NO | YES | YES | YES | YES | YES |
| Auto lip - sync | NO | NO | NO | YES | YES | YES | YES |
| Dolby TrueHD / DTS- HD Master Audio bitstream capable | NO | NO | NO | YES | YES | YES | YES |
| Updated list of CEC commands | NO | NO | NO | YES | YES | YES | YES |
| 3D video | NO | NO | NO | NO | YES | YES | YES |
| Ethernet channel (100 Mbit/s) | NO | NO | NO | NO | YES | YES | YES |
| 4 audio streams | NO | NO | NO | NO | NO | YES | YES |
| 2 video streams (Dual View) | NO | NO | NO | NO | NO | YES | YES |
| Hybrid Log -Gamma (HLG) HDR OETF | NO | NO | NO | NO | NO | YES | YES |
| Static HDR (HDR static metadata) | NO | NO | NO | NO | NO | YES | YES |
| Dynamic HDR (HDR dynamic metadata) | NO | NO | NO | NO | NO | NO | YES |
| Enhanced audio return channel (eARC) | NO | NO | NO | NO | NO | NO | YES |
| Variable Refresh Rate (VRR) | NO | NO | NO | NO | NO | NO | YES |
| Quick Media Switching (QMS) | NO | NO | NO | NO | NO | NO | YES |
| Quick Frame Transport (QFT) | NO | NO | NO | NO | NO | NO | YES |
| Auto Low Latency Mode (ALLM) | NO | NO | NO | NO | NO | NO | YES |
| Display Stream Compression (DSC) | NO | NO | NO | NO | NO | NO | YES |
The Adopted Trademarks HDMI, High -Definition Multimedia Interface, Premium High Speed HDMI Cable, Premium High Speed HDMI Cable Label and Logo, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
