Cable Reels

Dependable cable reels Dependable steel reels with 3-speed brake

Key Features and Benefits

  • 3-speed brake: lock/soft/free
  • Tubular steel E brace construction
  • Oiless bearing
  • Parallel wired M & F XLR3s for genderless connection (R300-CN)
  • Tech Data
  • Downloads

Cable Reels

Type Model Flange Dim Description Feature Weight

R300-S 300mm with auxiliary reel stackable 4.6 kg
R380-S 380mm w/casters 8.3 kg
R460-S 460 mm w/casters 9.9 kg
R300 300 mm cable hole on hub (no exit) stackable 4.3 kg
R300-L 300 mm connector trench on hub (no holes) stackable 4.4 kg
R300-CN 300 mm XLR3 receptacles on hub and flange stackable 4.6 kg
R300-BN 300 mm BNC receptacles on hub and flange stackable 4.6 kg
  • Color: black

Wiring

  • R300-CN_wiring

    R300-CN

  • R300-BN_wiring

    R300-BN

Reels with Cable Assemblies

type Model Description Weight
Cable reel Cable Assemblies
CR100-CN R300-CN 9.6 kg
CR100-S R300-S 9.6 kg
CR90-BN R300-BN 10.5 kg

Dimensions

  • R460-S

    R460-S

  • R300

    R300
    (Connectors can be attached to
    the front panel)

  • R380-S

    R380-S

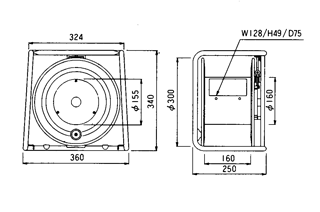

  • R300-L

    R300-L
    (Connectors can be attached to
    the front panel and the drum)

  • R300-S

    R300-S

  • R300-CN

    R300-CN
    (R300-BN comes with BNC recetacles)

Cable winding length reference chart

グラフ

Drawing
