EO12G-100B -
EO12G-101B
12G-SDI EO/OE Converters
An optical converter equipped with a reclocker that supports 12G-SDI signals.
- TECH DATA
- TECH NOTE
- DOWNLOAD

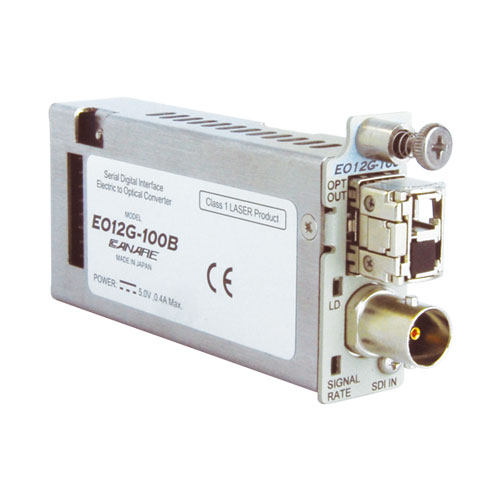

Electric to Optic Converter (TX)
| Model | Type | Wavelength | Emission | Occupancy |
|---|---|---|---|---|
| EO12G-100B | TX | 1310 nm | -2 dBm | 1 Slot |
| EO12G-100A-27 | TX for CWDM | 1271 nm | -1 dBm | 1 Slot |
| EO12G-100A-29 | 1291 nm | |||
| EO12G-100A-31 | 1311 nm | |||
| EO12G-100A-33 | 1331 nm | |||
| EO12G-100A-35 | 1351 nm | |||
| EO12G-100A-37 | 1371 nm | |||
| EO12G-100A-43 | 1431 nm | |||
| EO12G-100A-45 | 1451 nm |
Optic to Electric Converter (RX)
| Model | Type | Wavelength | Sensitivity | Occupancy |
|---|---|---|---|---|
| OE12G-101B | RX | 1260-1650 nm | -13 dBm | 1 Slot |
Key Features and Benefits
- Supports 12G/6G/3G/HD/SD-SDI and DVB-ASI
- Capable of Pathological Test Pattern transmission
(SMPTE RP-178, 198 Check Field Test Pattern) - Super low latency
- Compact size
- No complicated settings
- 3-color LED signal indication
- Note:
- Please use EO12G-100B/EO12G-100A and OE12G-101B in combination with each other only. In some cases, transmission may not be performed normally in combination with other products. Please contact us for more details.
- Note:
- Laser safety: This product equips Class 1 laser products. Do not watch laser beam directly whenever this product works. Even if the beam is from optical connector, your eyes may be damaged.
- Note:
- Using with the power supply unit 161UPSC, the green (HD) status light is lit.
- Note:
- The listed number is standard value.
Please see the products specifications for more details. - Note:
- The converter requires a power supply unit (sold separately).
Specifications
| EO12G-100B | EO12G-100A** | OE12G-101B | |
|---|---|---|---|
| Convertibility | Electric to Optic | Optic to Electric | |
| Fiber Type | Single Mode | ||
| Optical Input | N/A | 1 x LC | |
| Optical Output | 1 x LC | N/A | |
| SDI Input | 1 x 75 ohm BNC | N/A | |
| SDI Output | N/A | 1 x 75 ohm BNC | |
| Dimensions | 17 x 43.4 x 78.4 mm | ||
| Weight | Approx. 95 g | ||
| Standards | SMPTE ST 2082-1, 2081-1, 424, 297-1, 292-1, 259, EN50083-9 | ||
Technical Note
Jitter
The timing deviation of the periodic signal waveform is called jitter.
For serial data signals such as SDI signals, Jitter occurs due to the
deviation of reference clock signal, reflection caused by connection
through coaxial cables or between devices, loss of DC and high frequency
components, the influence of noise from the equipment itself or from the
outside.
In the worst case, an error occurs in clock data recovery due to this jitter
and that with SDI signals, noise may appear on the screen or signal
transmission may come to be fail.
Wavelength Multiplexing Systems
Multiplexing
“Multiplexing” is a technology that allows multiple signals with different wavelengths to be transmitted together over a single optical fiber. Three general types of multiplexing — WDM, CWDM and DWDM — offer increasing signal-carrying capacities, as described below.
Multiplexing (CWDM)
Wavelength Division Multiplexing (WDM)
WDM is the simplest form of multiplexing and uses two wavelengths of 1310nm and 1551nm. Unlike when using and optical divider, insertion loss can be kept below 0.5dB.
Coarse Wavelength Division Multiplexing (CWDM)
CWDM systems use 8 wavelengths (20nm grid) primarily between 1471nm and 1611nm. To these it is also possible to add 8 more between 1271nm and 1451nm to allow a maximum of 16 wavelengths to be carried as a single multiplexed transmission. An ultra-thin membrane filter on the optical multiplexer/demultiplexer (mux/demux) keeps insertion loss at just 2-3dB. *CWDM standardized through ITU G695.
Optical Converter (TX for CWDM)
Canare’s CWDM optical converter uses a DFB laser, which offers a much tighter spectrum than FP lasers. Up to 16 different wavelengths fall within 1271nm and 1611 nm in 20nm intervals. The wavelengths in the 20nm grid between 1391nm and 1411nm are not used because their proximity to the water peak results in too much attenuation
Optical Fiber Transmission Loss Characteristics
Optical Multiplexer/Demultiplexers
The optical signals output from the optical converter (TX) are combined
into a single signal by the multiplexer (mux) and transmitted along a single
optical fiber. At the receiving end, these combined optical signals are
demultiplexed (demux) to split them back into their original component 8
signals.
Optical mux/demuxers are bi-directional, so the same model can be
used for transmitting and receiving on each end. It’s also possible to use
4 wavelengths out of the 8 for transmitting and the remaining four for
receiving. Both 8-wavelength and 16-wavelength models are available,
and combining these with an optical converter allows a variety of system
constructions with many uses.
Optical Converter (RX)
Canare’s optical converter (RX) converts an optical signal comprised of 8 different wavelengths into electrical signals. This converter is common to all wavelengths and one converter is required for each wavelength.
8-wavelength CWDM system example
- Once optical fiber cables have been laid, multiplexing the transmissions carried on them eliminates the need to purchase and install new cables when more transmission lines are needed.
- Eight Canare optical converters and an FCWDM-8B mux/demuxer can be installed compactly on a single 161UPSC 1RU-size platform, effectively allowing an 8-wavelength transmission system to be achieved in just 1RU of space.
