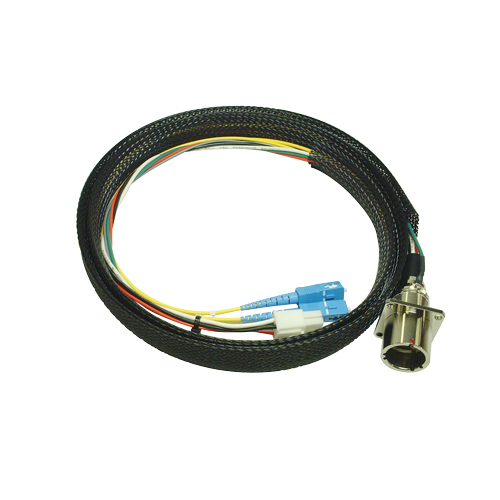

• FCS015A-FR

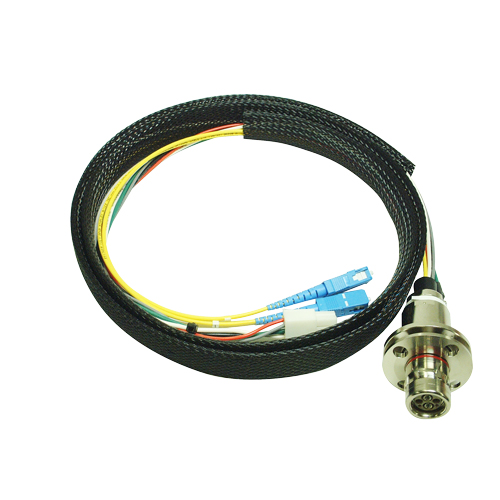

    Sample image OCS015-FR

HFO Camera Receptacle Cables

Hybrid Fiber-Optic Receptacle Cable Assemblies.

Key Features and Benefits

  • Ideal for connecting wall terminal panels to splice enclosures, etc.
  • Return loss: 45dB or greater (λ=1.3µm) .
  • Insertion loss: 0.5dB or less (λ=1.3µm) .
  • Connector body material is stainless steel.
  • Insulation plates included.
  • See below for the panel hole dimensions.
  • Tech Data
  • Downloads

Pigtails

Type Model Length (m)

IU-FCF-SET included

BLK
FCS015A-FR 1.5

IU-FCM-SET included

BLK
FCS015A-MR 1.5
  • * Canare OC series (Hybrid-OPS profile) is also available.

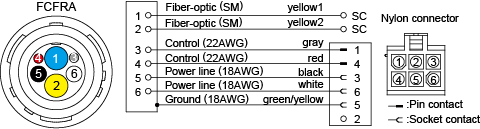

Wiring Diagram

Wiring Diagram for FCS

Drawing

Specification
