6-channel Fiber-optic Snakes

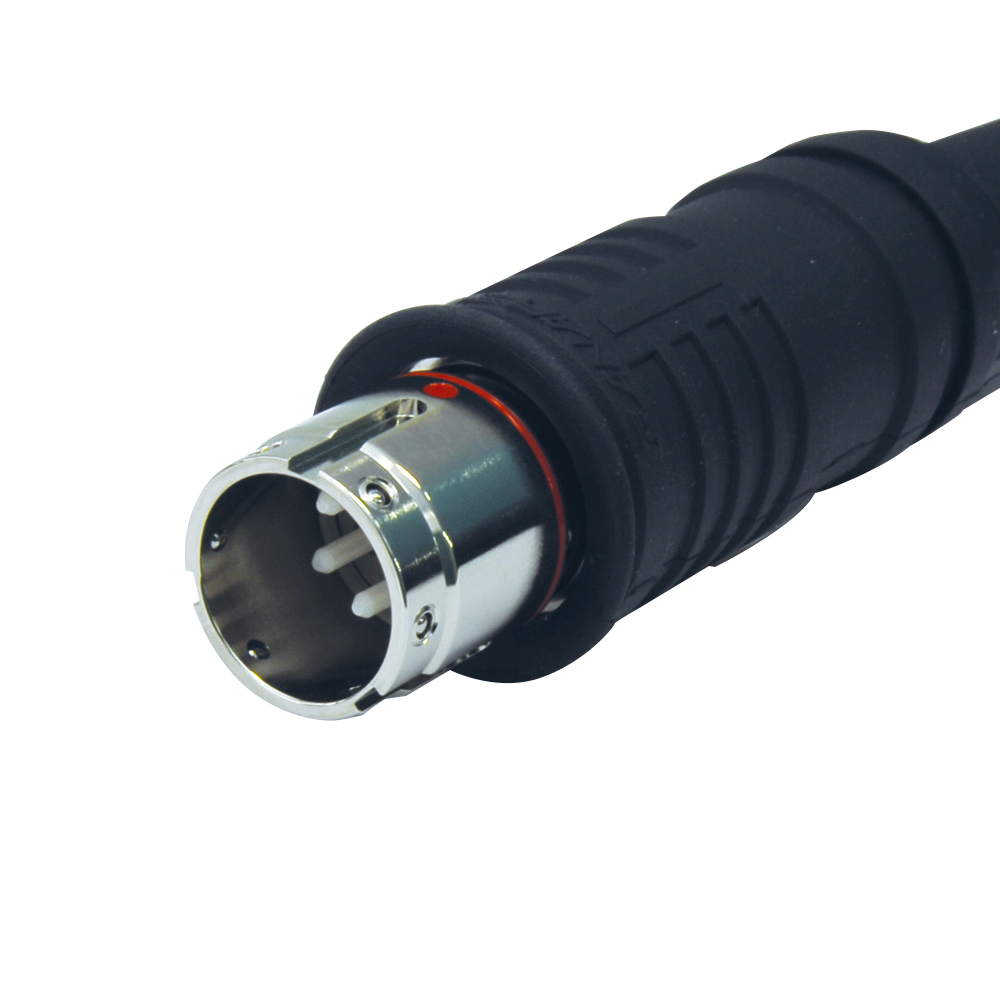

Ruggedized multichannel fiber-optic assemblies with robust 6-fiber connector.
- TECH DATA
- TECH DATA
- DOWNLOAD
6-channel Fiber-optic Snakes
| Type | Model | Length (m) |
|---|---|---|
|
OM6PA - OM6JA
BLK
|
OM6C10 | 10 |
| OM6C20 | 20 | |
| OM6C25 | 25 | |
| OM6C35 | 30 | |
| OM6C50 | 50 | |
| OM6C100 | 100 | |
| OM6C150 | 150 | |
| OM6C200 | 200 |
Key Features and Benefits
- Single-mode, ITU-T G.657.A2 low bending loss and low water-peak fiber
- Abrasion-resistance cable jacket
- Tensile strength: 700 N or less
- Return loss: 45 dB or greater (λ = 1.3 µm)
- Insertion loss: 0.5 dB or greater (λ = 1.3 µm)
- 7-color connector rings included.
- Blue dust cap makes it easier to distinguish OM6 from HFO camera connectors.
- Note:
- Canare OM6 connectors are NOT compatible with other multichannel/hybrid fiber-optic connectors.
- Note:
- IBC brand "one-push" cleaner M-20 is highly recommended for cleaning OM6 connectors.(model: 14347 CLEANER)
Technical Note
Hybrid Fiber-Optic Camera Cable Checker
The connector sections to be cleaned are the key parts, including the tips and sides of ferrules, the interior walls of alignment sleeves and the interior and exterior of connector shells. Note that scratches and particles of foreign matter on the tip of the ferrule can have a disabling effect on fiber-optic transmission. The following procedures should be used when cleaning hybrid fiber-optic camera connectors.
- For Plugs, the interior surfaces of alignment sleeves and the tips of ferrules are to be cleaned with the non-alcohol treated cleaning stick using a gentle stroking action.
Canare FCFA and FCFRA enhance easy cleaning procedure for its innovative alignment sleeve and insulator detachable design.
US Patent: No.7241055B2 - For Jacks, it is important to clean both the tips and sides of the completely protruding ferrules with the cleaning stick.
- Both the male and female connector shells tend to attract dust and metal particles, so it is important to clean both the insides and outsides using cotton gauze or similar material.
Cleaning Stick /Model: CLETOP 2.5/2.0
- Compact and disposable
- Allows cleaning both the tips and sides of ferrules
- Manufactured by NTT-AT
IBC Brand Cleaner M-20 /Model: 14347 CLEANER
- Easy “one-push” cleaner
- Allows cleaning the tips of ferrules without removing alignment sleeve
- Manufactured by US Conec
Cleaning guide for female connectors
| SMPTE ST 304/311 (FC Series) | Japanese Style (OC Series) & OM6 Series | |
|---|---|---|
| FCFA / FCF7A / FCFRA / FCFRCA | OCFA / OCF7A / OCFRA / OCFRCB / OM6PA / OM6PRA | |
|
1 Extract an insulator unit. |
 |
 |
|
2 Clean up ferrules. |
 |
 |
|
3 Dust away on alignment sleeves |
 |
 |
|
4 Put back the unit in place |
 |
 |
| OM12 Series | ||
|---|---|---|
| OM12JR / OM12J | OM12PR / OM12P | |
|
1 Put back the unit in place |
 |
 |
