HFO Transmission Device (Quad-link)
Transmit 4-channel SDI over a HFO camera cable.
Key Features and Benefits
- All-in-one device which combines four EO/OE modules and a power supply unit.
- The best solution for Quad-link 12G/3G-SDI outside broadcasting.
- Flexible configcaption by replacing EO/OE modules.
- AC and DC input redundancy
- Optical SC connector for optional use
- Note1:
- Canare OC series (Hybrid-OPS profile) is also available. Please contact us for more details.
- Note2:
- Scratches and particles of foreign matter on the tip of the ferrule can disable the fiber-optic transmission. Be sure to cover the cable head with the attached dust cap when it is not in use.
- Note3:
- It is safe to use CLASS 1 laser, but it should not be applied directly to the eyes or skin.
- Note4:
- Mounting brackets for rack mount are available.
- Tech Data
FCBK4-12G12G-SDI
| Model | HFO Connector | EO/OE Modules | EXT Connector | IDX V-plate |
|---|---|---|---|---|
| FCBK4-FF5W1-12G | FCFRA (Female) | 4 x OE12G-101B (RX) | XLR5 Female | No |
| FCBK4-FF5W1-12G-PV | FCFRA (Female) | 4 x OE12G-101B (RX) | XLR5 Female | Yes |
| FCBK4-FM5W2-12G | FCMRA (Male) | 4 x EO12G-100A-** (TX) | XLR5 Male | No |
| FCBK4-FM5W2-12G-PV | FCMRA (Male) | 4 x EO12G-100A-** (TX) | XLR5 Male | Yes |
Key Features and Benefits / FCBK4-12G
- The best solution for 8K/Quad-link 12G-SDI outside broadcasting.
- Support 12G/6G/3G/HD/SD-SDI and DVB-ASI
- Flexible configcaption by replacing EO/OE modules.
- Capable of Pathological Test Pattern transmission.
- Available in two most common hybrid camera connector interface: Canare FC series (SMPTE/ARIB) and OC series (Hybrid-OPS). Please select the connector that best suits your HFO camera cable.
- XLR5-31-F77 or XLR5-32-F77 connector is used as an external terminal.
- Optical SC connector for optional use
- Mounting brackets for rack mount are available.

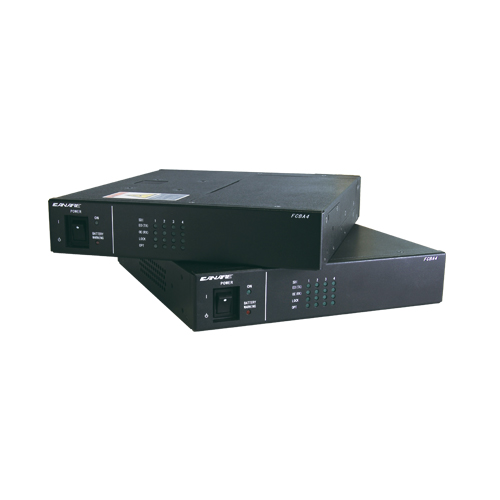

FCBA4-3G
| Model | HFO Connector | EO/OE Modules | EXT Connector | IDX V-plate |
|---|---|---|---|---|
| FCBA4-FF5W1 | FCFRA (Female) | 4 x OE3G-101 (RX) | XLR5 Female | No |
| FCBA4-FF5W1-PV | FCFRA (Female) | 4 x OE3G-101 (RX) | XLR5 Female | Yes |
| FCBA4-FM5W2 | FCMRA (Male) | 4 x EO3G-100A-** (TX) | XLR5 Male | No |
| FCBA4-FM5W2-PV | FCMRA (Male) | 4 x EO3G-100A-** (TX) | XLR5 Male | Yes |
- *Support 3G/HD/SD-SDI and DVB-ASI.
Key Features and Benefits / FCBA4-3G
- All-in-one device which combines four EO/OE modules and a power supply unit.
- The best solution for Quad-link 3G-SDI outside broadcasting.
- Flexible configcaption by replacing EO/OE modules.
- AC and DC input redundancy
- Optical SC connector for optional use
Specifications
| Type | without V-plate | with V-plate |
|---|---|---|
| SDI connector | 4 x 75 ohm BNC | |
| Optical connector | SC (for optional use) | |
| AC input | AC 3P Jack | |
| DC input | XLR4-32F77 (Male) | |
| Power requirement | AC 100-240 V, DC 10-18 V | |
| Operating Temp. | -10 to 40 deg C | |
| Dimensions | 210 x 42 x 240 | |
| Weight | 1800 g | 1850 g |
Example of the 8K Transmission Use
8K transmission is available by using your HFO camera cables.
*Click pics to enlarges
